Hamilton Electric Watch Movements

Hamilton Electric watches combine battery-power with a traditional mechanical watch balance wheel and gear train. Though state-of-the-art in 1957, this revolutionary technology quickly became obsolete and very few watchmakers ever mastered the art of repairing these totally unique and amazingly complex movements.

The heart of these watches is in their electrical contact systems. Unlike modern quartz watches with transistor circuitry, the Hamilton Electric has microscopic contact points physically making and breaking the electric circuit five times each second --18,000 times every hour. Inevitably this leads to wear on the tiny surfaces. This was not considered a drawback in 1957, inasmuch as people were used to having their mechanical watches serviced every 2-3 years anyway. During normal maintenance of Hamilton Electric watches, contacts and balance wheels were routinely renewed. (Even now all fine watches, whether mechanical or electric, need periodic servicing to stay in good running order. In today's throwaway society many people have lost sight of this very important fact!)

The first Hamilton Electric was the Model 500

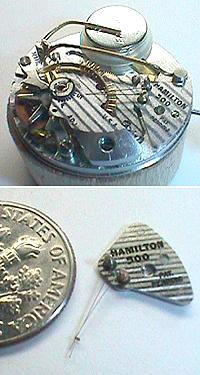

Released January 3, 1957 and produced into 1959. The critical contact wire/trip spring assembly consists of two very fine wires mounted to posts on the patent plate, which extend to the balance wheel as seen in the picture on the upper right. The picture on the lower right shows this assembly removed from the watch, with an ordinary dime as a scale reference. These wires are five times finer than a human hair, and they must be adjusted absolutely precisely. There is no margin for error in tension, height, length, angle, or position. Contact adjustment in the Model 500 is a time consuming, painstaking process which

Model 500

requires a great deal of skill and experience, as even the slightest irregularity in their adjustment will prevent the watch from functioning properly. Once properly adjusted, however, the watch can run quite reliably for many years. (Extreme care must be taken when replacing the battery as the clamp is perilously close to the exposed wires.)

The Model 500A
Model 500A Introduced in 1959, this was a modest improvement over the original Model 500. The wire battery clip was replaced with a simpler clamp, and the shockproof jewels were modified. Otherwise it is virtually identical
to the Model 500, with the same critical contact wires.

The Model 505

This significantly improved movement was released in 1961. The delicate contact wire and trip spring were eliminated, replaced by a non-adjustable contact on the balance assembly. It is thus a simpler and more reliable watch, however there was one downside to this improvement. The contact pressure is much stronger than in the Model 500 and
as a result the contacts wear more quickly. (In my restorations I routinely replace the contacts in Model 505 movements with new-old-stock original Hamilton factory parts, making them equivalent to factory-new.)

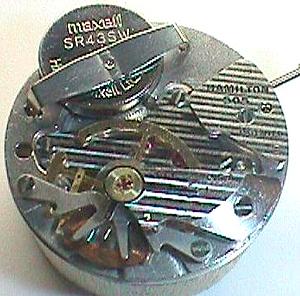

Model 505

In all Hamilton Electrics this contact wear can be minimized by shutting off the watch whenever it is not being worn, by simply pulling out the stem.
